FEATURES ETX CPU core provides price/performance selection Choice of Intel Atom N270, Atom N450, or Core Duo LV CPUs Up to 2GB DDR2 SO-DIMM SDRAM Quad USB 2.0 ports Quad serial ports Dual 10/100Base-T Ethernet ports SATA, IDE and floppy ports CompactFlash interface CRT, 18-bit or 24-bit LVDS LCD and TV out PC/104-Plus (ISA & PCI) expansion bus -20ºC to +71ºC or -40ºC to +85ºC operation ETX form factor: 4.5 x 3.7 in. (114 x 95 mm)

ONLINE SUPPORT Product Documentation Software Downloads Discussion Topics Frequently Asked Questions Request Product information Request Technical Support

DOWNLOADS Embedded Ready Subsystems whitepaper (.pdf, 386.4 kb) ETX-945 Series datasheet (.pdf, 377.5 kb) ETX-N270 Series datasheet (.pdf, 318.1 kb) Pluto Datasheet (.pdf, 226.5 kb) Standards-Based COM Carriers (.pdf, 222.9 kb) VGA cable datasheet (.pdf, 89.3 kb) ETX-945 Series User Manual (.pdf, 891.7 kb) ETX-N270 Series User Manual (.pdf, 888.6 kb) Pluto User Manual (.pdf, 1.1 MB) 945 Graphics Drivers (ETX, Neptune, Pluto) (.zip, 16.9 MB) Audio Drivers (ETX, Neptune, Pluto) (.zip, 27.2 MB) Chipset Drivers (ETX, Neptune, Pluto) (.zip, 2.1 MB) N270 Graphics Drivers (ETX, Neptune, Pluto) (.zip, 16.9 MB) Pluto Realtek Ethernet Driver (.zip, 42.6 kb) Realtek Ethernet Drivers (ETX, Neptune, Pluto) (.zip, 4.9 MB)

Pluto ETX SBC ETX Form-Factor Embedded-Ready Subsystem with PC/104-Plus Expansion and Configurable CPU

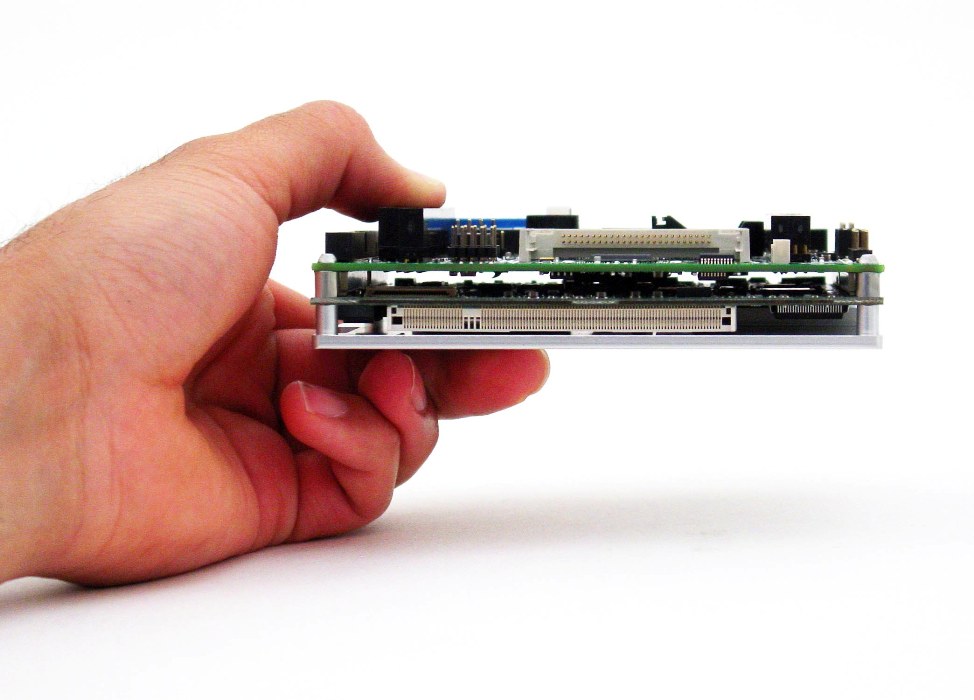

Side View Click image to enlarge Angled View Click image to enlarge

Description System Block Diagram Cable Kit Specifications Get An Online Quote

Description

Pluto is a high performance, highly integrated board-level embedded-ready subsystem that matches the footprint of the popular ETX computer-on-module (COM) standard.

Pluto's CPU core consists of an ETX CPU module mounted on its bottom side, and is available with your choice of different power/performance CPUs. Pluto utilizes conduction cooling for improved ruggedness and reliability through the use of a heatspreader, improving thermal management and increasing the space for I/O functions and connectors. This innovative design has enabled Pluto to integrate additional serial and Ethernet controllers, a complete set of peripheral interface header connectors, and a PC/104-Plus expansion stack location - all within the compact ETX footprint. Four mounting holes on the bottom of the conduction cooled heatspreader are provided to mount Pluto in an enclosure or to a bulkhead. These mounting holes are #6-32 threaded holes on 2.8" centers.

Choice of CPUs

Pluto is offered in a range of models that vary according to the choice of ETX CPU module and on-board SO-DIMM SDRAM capacity. A choice of ETX COMs offers scalable performance for your application as well as protection from obsolescence through plug compatible CPU modules. It can be used either as a highly integrated embedded component, or as a platform for application development and reference designs.

Top View Click image to enlarge	Bottom View Click image to enlarge

Pluto's baseboard includes connectors and interfaces for keyboard, mouse, USB, serial, parallel, Ethernet, sound, various mass storage devices. It supports the connection of a wide variety of displays, including CRTs, 18-bit or 24-bit LVDS-interfaced flat panels, and televisions. Power is supplied by means of a robust six-pin terminal block.

  >  >   Read the Embedded-Ready Subsystems whitepaper   <  <

top
	System Block Diagram

Click on the image to enlarge

top
	Pluto Cable Kit

The Pluto cable kit includes cables for Pluto input and output.

top
	Specifications

top
	Get An Online Quote

Pluto ETX SBC available models: PLT-N450RK-2G Pluto SBC, 1.6GHz Atom N450 CPU, 2GB SO-DIMM SDRAM, digital I/O, VGA/LCD video, heatspreader, -40 to +85oC operating temperature PLT-N450RK-1G Pluto SBC, 1.6GHz Atom N450 CPU, 1GB SO-DIMM SDRAM, digital I/O, VGA/LCD video, heatspreader, -40 to +85oC operating temperature PLT-N270XT-2G Pluto SBC, 1.6GHz Atom N270 CPU, 2GB SO-DIMM SDRAM, digital I/O, VGA/LCD video, heatspreader, -40 to +85oC operating temperature PLT-N270XT-1G Pluto SBC, 1.6GHz Atom N270 CPU, 1GB SO-DIMM SDRAM, digital I/O, VGA/LCD video, heatspreader, -40 to +85oC operating temperature PLT-N270RK-2G Pluto SBC, 1.6GHz Atom N270 CPU, 2GB SO-DIMM SDRAM, digital I/O, VGA/LCD video, heatspreader, -20 to +71oC operating temperature PLT-N270RK-1G Pluto SBC, 1.6GHz Atom N270 CPU, 1GB SO-DIMM SDRAM, digital I/O, VGA/LCD video, heatspreader, -20 to +71oC operating temperature PLT-945RK-2G Pluto SBC, 1.66GHz Core Duo LV CPU, 2GB SO-DIMM SDRAM, heatspreader PLT-945RK-1G Pluto SBC, 1.66GHz Core Duo LV CPU, 1GB SO-DIMM SDRAM, heatspreader DK-PN450RK Pluto N450 System Development Kit: PLT-N450RK-1G, cable kit, OS drivers, documentation DK-PN270RK Pluto N270 System Development Kit: PLT-N270RK-1G, cable kit, OS drivers, documentation DK-P945RK Pluto 945 System Development Kit: PLT-945RK-1G, cable kit, OS drivers, documentation C-PLT-KIT Pluto Cable Kit SDK-PLT945-XPE Pluto CoreDuo Windows Embedded Standard Software Development Kit with 2GB CompactFlash disk SDK-PLTN270-XPE Pluto Atom N270 Windows Embedded Standard Software Development Kit with 2GB CompactFlash disk Please login or signup for an online quote request.
